My Two Phat Greek Scooters

Years ago, I started a “Family model” (two-seater) Scooter project. Got halfway through it then life showed up. And not in a good way. Lost my job, apartment and had to move out of state. Along with my passion to build eroded to nothing. Fortunately, after some time things changed for the better and it was time to get back to my scooter build. And like my life, my build idea changed too. It was going to be based on a theoretical Royal Australia Air Force Scheme from Richard Chafer, but now she will be flying for the Hellenic Air Force. And because I enjoy building in pairs, I added another scooter to this project. An A-4M, she’s the “Single Girl”. Flown by Natasha Drakos callsign “Chiana”. “Family model” is flown by Zander “Boomer” Leos.



On Both

1/48 Hasegawa

Custom resin nose/radome

Ejection seats are from Quickboost

Refueling probe are made from Master model NATO Standard refueling probe, the rear section of the kit part and an aluminum tube.

Center line pylon are resin copies of Shull resin F-16 pylon

Drop tank is resin copy of the kit tank that was reworked

The tailpipe extension are resin copies of Quickboost.

Wheels and tires are from Reskit

IRIS-Ts and missile rail are from Eduard Brassin

The ADU-229 adapter for the IRIS missile rail is a kit part.

Nozzle plug scratchbuilt from sheet styrene

30mm canons housing are custom made resin parts

30mm barrels are made from two telescoping aluminum tubes

Decals from Procal, Icarus Decals, Zeus Projects, Afterburner Decals, Super Scale Decals and Squadron markings are homemade decals

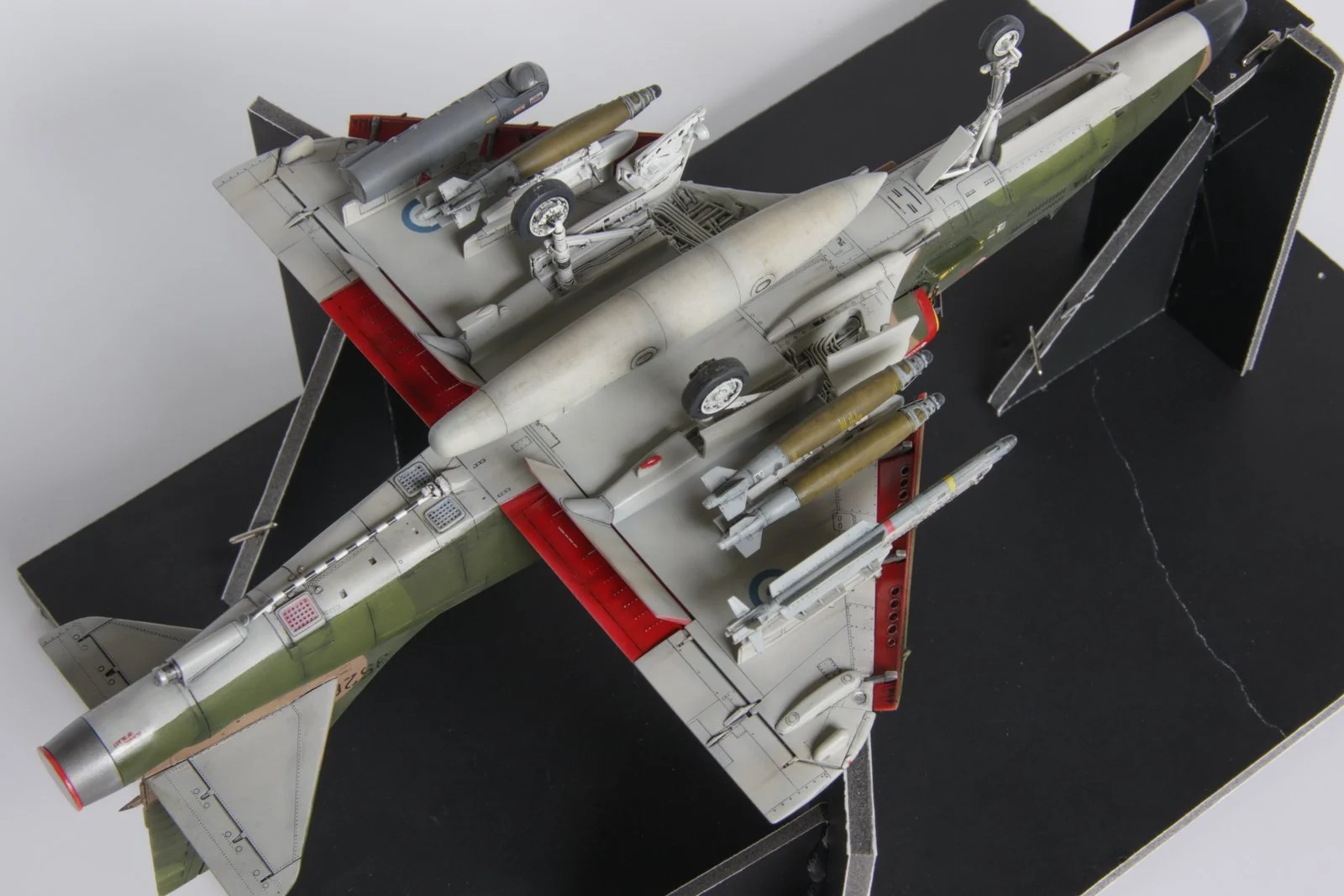

“Family Model”

1/48 scale Hasegawa TA-4J

Avionics hump is from Monograms OA-4M kit

Intake plugs are from Quickboost

Handles on intake plugs are a cut steel T-pin

Boarding ladder is from Monogram OA-4M kit

Connecting rod on ladder is a steel pin

RWR on the outer underside of the wing art custom resin parts

AN/AAQ-28(V) Litening targeting pod is from Eduard Brassin

Greenish lense for Litening pod is a piece of metallic confetti die cut

Triple ejector rack is from Hasegawa Weapon set D

GBU-38s are from Eduard Brassin



“Single Girl”

1/48 scale Hasegawa A-4M

Intake plugs mastered from Milliput then molded and pressure cast resin copies

Pitot tube in horizontal stabilizer is a steel pin

GPU-2/A 20mm gun pods were mastered from Eduard Brassin SUU-23 Gun pods. Then molded and pressure cast resin copies





My girl’s accessories

Bomb cart from Skunkmodels Workshop

“Explosive” sign scratch-built from styrene

Extra GBU-38s are resin copies of Eduard Brassin

Chain on bomb cart is a crafting necklace

Start cart, Fire extinguisher and wheel chalks are from Hasegawa U.S. Ground Crew set A

Flightline traffic cones from Aero Bonus

“Boomer” Helmet from True Details

Display base is from Coastal Kits

Display case is custom made from shopPOP display



Figures

“Chiana” Female pilot from 3-D printed from Reedoak

“Boomer” Male pilot from Hasegawa U.S. Ground Crew set A

“Chicky” Female squatting from Hasegawa U.S. Ground Crew set A

“Dude” Male standing at Start cart from Hasegawa U.S. Ground Crew set A



All figures were…

Painted with Testors Master Model enamel paint

Glossed with Future

Washed with watercolors

Dry brushed with various colors
